Key Features
1. Revolutionary Glueless Winding Technology
Unlike traditional methods, our system utilizes advanced physical locking algorithms to secure the fiber. This Glueless Technology eliminates the risk of fiber adhesion, ensuring a smooth, zero-resistance payout at speeds exceeding 300 km/h.

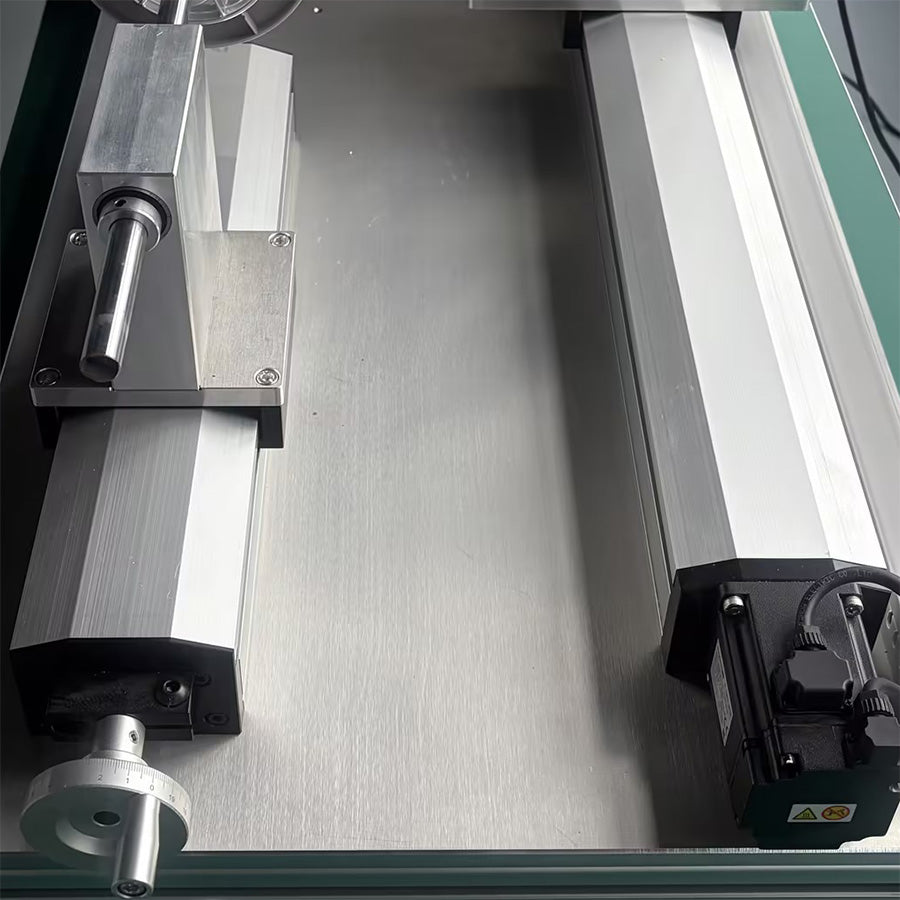

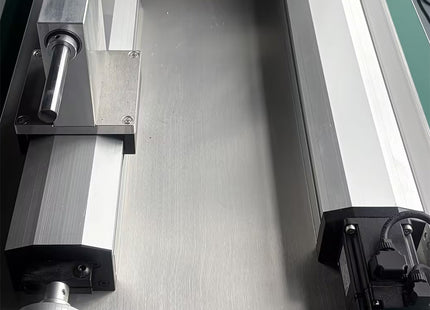

2. Micron-Level Traverse Synchronization
Equipped with high-resolution servo motors, the system achieves a traverse repeatability of ±0.001mm. This ensures that 0.25mm/0.26mm fibers are aligned with absolute perfection, preventing overlapping or gaps that cause signal attenuation.

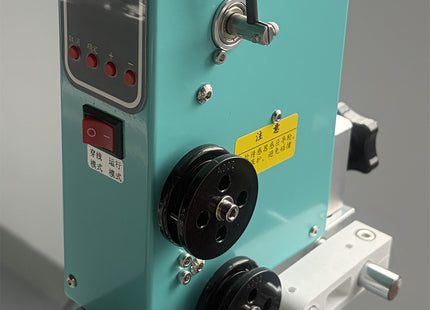

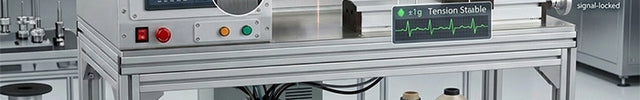

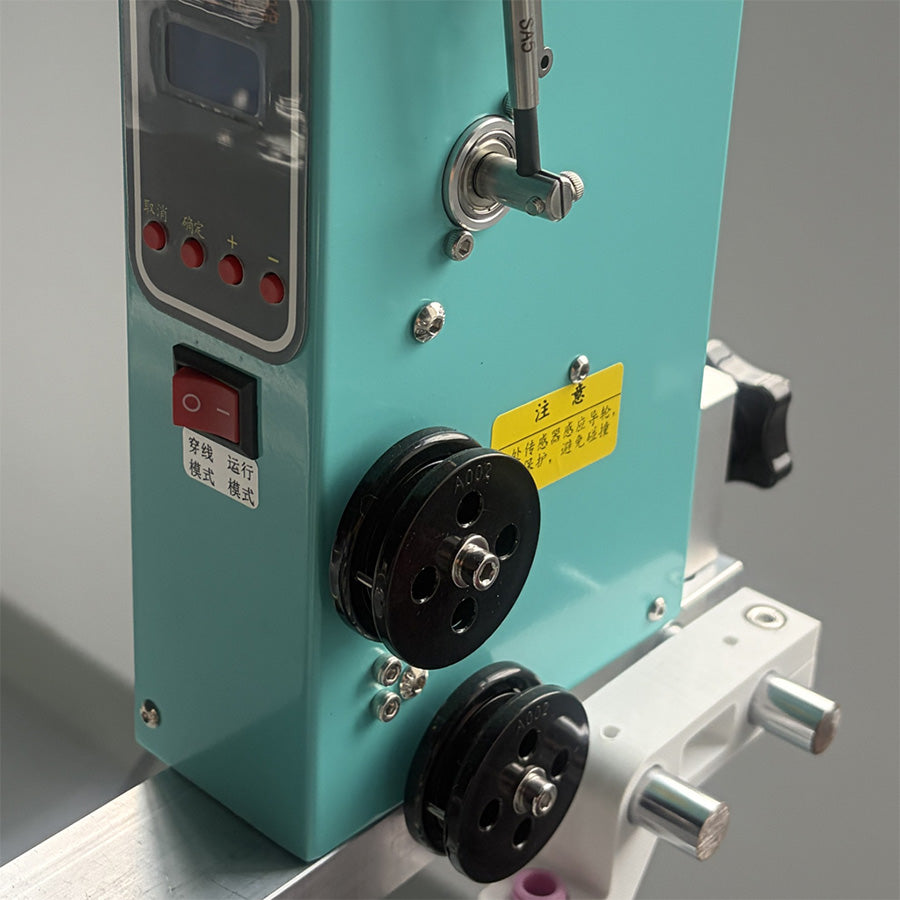

3. Active Closed-Loop Tension Management
Signal integrity is fragile. Our active tension control system maintains constant pressure with a fluctuation of less than ±1g. By eliminating micro-bending during the winding process, we preserve the maximum optical performance of the fiber over distances up to 60km.

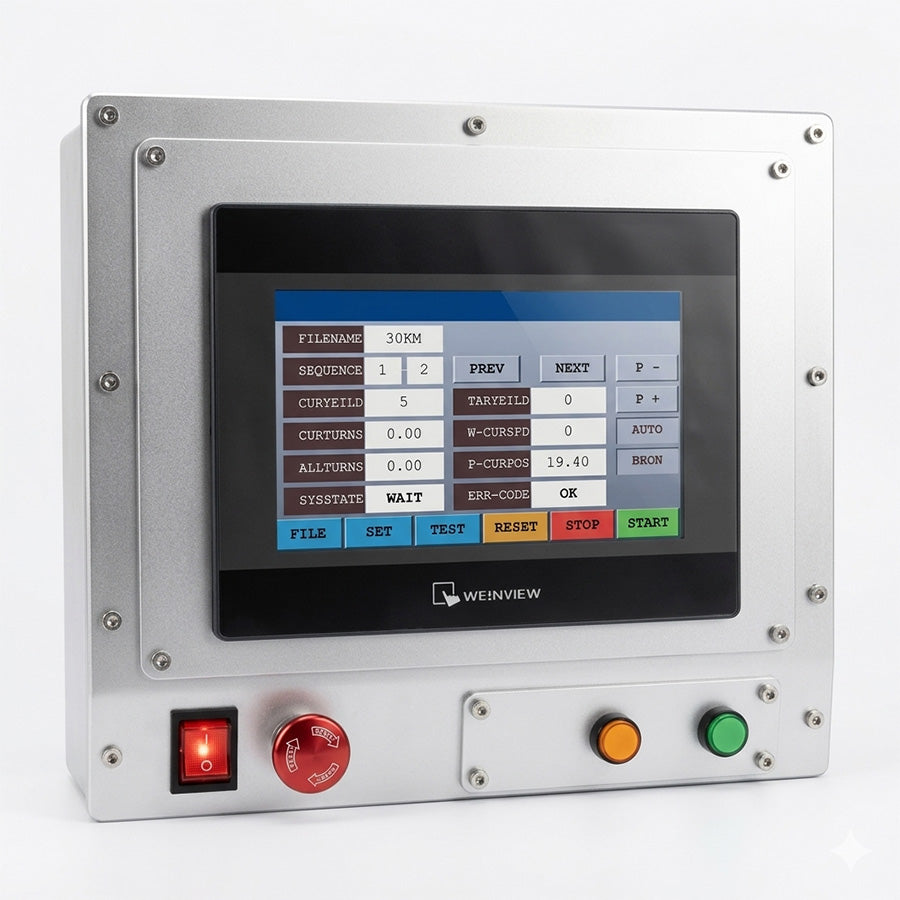

4. Intelligent Diagnostic Interface
The industrial-grade HMI (Human-Machine Interface) provides real-time monitoring of winding speed, tension curves, and length accuracy. With built-in Auto-Stop Sensors, the machine instantly detects fiber breakage or tension anomalies to prevent material waste.
Technical Specifications
| Feature |
Specification |
| Applicable Fiber |
0.25mm – 0.9mm (Single/Multi-mode) |
| Max. Winding Speed |
3000 RPM (Adjustable) |
| Winding Distance |
2km – 60km (Customizable) |
| Traverse Accuracy |
±0.001 mm |
| Tension Range |
10g – 200g (Closed-loop) |
| Control System |
PLC + High-Precision Servo Drive |
Why Choose CKT Drone Technology?
As leaders in the industrial UAV sector, HK CKT CO., LIMITED understands that a winding machine is not just a tool—it is the foundation of mission success. Our systems are tested against the harshest deployment scenarios, from power line inspections to confined space mapping.
-
Reliability: Engineered for 24/7 industrial production.
-
Customization: Support for various spool geometries to fit any UAV airframe.
-
Support: Comprehensive technical training and global after-sales service.
Applications
-
Defense & EW: High-speed FPV interceptor fiber spools.
-
Infrastructure: Long-range oil and gas pipeline inspection.
-
Power Industry: High-voltage environment communication links.
-
Emergency Response: Stable data transmission in GPS-denied zones.
